In this product review, we will have a look at version 18.2 of Kernel
for Exchange Server from Lepide
Software’s sister company, Kernel Data Recovery.
Lepide Software is known company in the IT arena. Its Kernel range
of products include popular solutions for data recovery, database recovery,
file repair, email migrations, email recovery, and more. Kernel for Exchange
Server is primarily an Exchange mailbox database recovery tool. It helps
admins easily recover mailbox content (emails, attachments, contacts,
calendars, and tasks) after any event of Exchange disruption or corruption. Besides
being able to convert an EDB file to PST, it can migrate mailboxes from offline
EDB files to a live Exchange environment or even to Office 365 mailboxes
(including archive mailboxes and public folders). Some of its features include:
- Extraction of mailbox data from inaccessible EDB files to PST;
- Extraction of data to MSG, EML, TXT, RTF, or HTML formats;
- Migration of mailboxes from offline or online databases to Exchange and Office 365;
- Migration from IMAP servers (like Gmail, Yahoo, Hotmail, and GroupWise) to PST, live Exchange Server, or Office 365 mailbox;
- Export Office 365 mailboxes to Office 365 mailboxes or PST;
- Fully compatible with Microsoft Outlook 2016 & Exchange Server 2016, as well as all prior versions;
- In-built backup extractor to recovery EDB files from NT Backup and VERITAS backups.
So let’s start by looking at how we install this tool.
Installing Kernel for Exchange
Server
Before downloading and installing Kernel for Exchange
Server, make sure your system fulfils the following prerequisites:
- Processor: minimum dual-core processor (quad-core recommended);
- RAM: minimum 4 GB (8 GB recommended);
- Disk: minimum 200 MB free disk space;
- Windows Operating System: either 32 or 64-bit of Windows 7 or above, or Windows Server 2003 or above;
- Outlook: Outlook 2000 or above;
- Exchange: Exchange Server 2000 or above;
- Supported Virtual Environments: VMware Server 1.0x (or above), VMware Workstation v6.0x (or above), VMware ESX 4.0 (or above), Hyper-V, and Microsoft Virtual PC 2007.
Start by downloading Kernel for Exchange Server software
from this
webpage and save it locally. Once you have the installer file, follow
these steps:
1.
Double-click the Kernel for Exchange Server’s
installer file. It will initiate the installation process with the following
setup wizard:
2.
Click Next
to proceed. Read the license agreement carefully and then select I accept the agreement:
3.
Click Next
to continue to the next dialog box. This will display the wizard to change the
destination location:
4.
The default installation location is %ProgramFiles%\Kernel for Exchange Server
for 32-bit and %ProgramFiles(x86)%\Kernel
for Exchange Server for 64-bit Windows OS. You can click Browse to change the location if
desired. Once you’re done, click Next;
5.
If required, change the location of the shortcuts
folder in the Start Menu:
6.
Click Next
to proceed to the next steps, where you have the option of creating icons in
the desktop and Quick Launch bar for easy access:
7.
Click Next
to proceed;

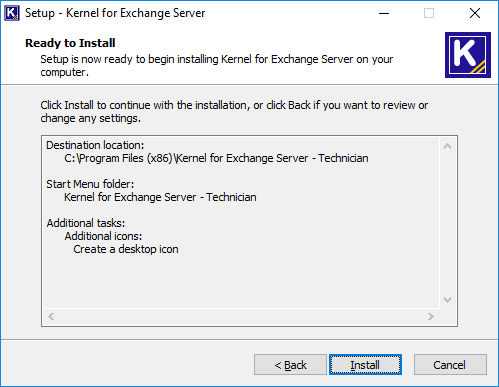

8.
Setup is now ready to start the installation
process. Click Install:

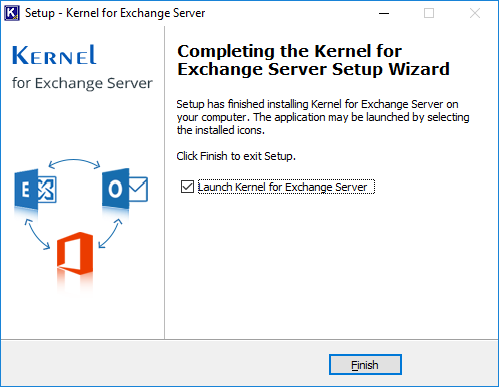

9.
Once the installation is complete, click Finish to complete the installation
process:
10.
If you have checked the Launch Kernel for Exchange Server option, then the software’s main
screen will appear:
Here we can see that this product has a very clean,
modern and easy to use user interface.
Using Kernel for Exchange
Server
The first step to use the software, is to select a
source from which we want to retrieve/recover data from. This can be any of the
following:
·
An offline Exchange EDB file;
·
A live Exchange environment, from which we can
select:
o
A single mailbox;
o
Public Folders;
o
Archive mailbox;
o
Multiple mailboxes;
o
An Outlook profile to add a single mailbox as a
source.
·
Gmail, Yahoo, Novell GroupWise, or other email
accounts using an existing Outlook Profile;
·
Office 365:
o
A single mailbox;
o
Public Folders;
o
Archive mailbox;
o
Multiple mailboxes,
o
An Outlook profile to add a single mailbox of
Office 365 as a source.
Let’s start with a corrupted EDB file and then have a
look at Office 365.
EDB Files as a Source
An unmounted and offline EDB file can be added as a
source. Kernel for Exchange Server scans the EDB file for possible errors,
fixes them, retrieves its data, and then allows us to export it to a PST file
or transfer it to another Exchange mailbox for example.
For this test, I have an EDB file in a Dirty Shutdown state:
So, let’s see how Kernel for Exchange Server deals
with it. To add it as a source:
1.
We start by clicking on Add Source... or on Offline
EDB;
2.

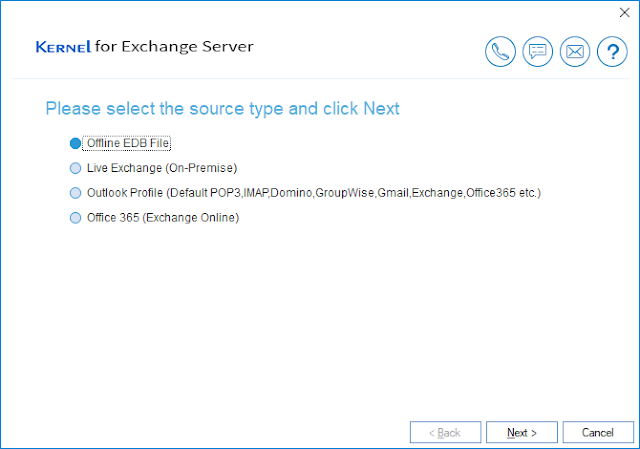

We select the Offline EDB File option and click Next:
3.
There are two ways of adding one or more EDB
files: we can select the EDB file manually by clicking on ... and select the location where the EDB file is stored, or we can
search for EDB files using the Search
button. While scanning EDB files, the temporary scanning data and logs are
stored in the Temp Path directory.
4.
Next, we must choose between the two types
of EDB scanning:
a. Standard Scan should be used when the EDB
file is not severely corrupted or if we just want to migrate the data from a
working offline EDB file to any destination. If the EDB cannot be recovered
using this method, then the software will switch to Deep Scan;
b. Deep Scan is for severely corrupted EDB
files, or those very large sized. This scan will take longer but should retrieve
most data from the EDB file.
5.
In some cases, where the EDB file is
severely corrupted, the From field of
emails either shows an ambiguous value or are blank. Therefore, it is advised
to check the box titled Use message table
to get "From" field:
6.
Click Next
to start the scanning. Once complete, the following dialog box is displayed:
7.
Click Finish
button to complete the process;
8.
After completing the process, the selected offline
EDB file(s) is displayed under Source
List, together with all the mailboxes it holds:

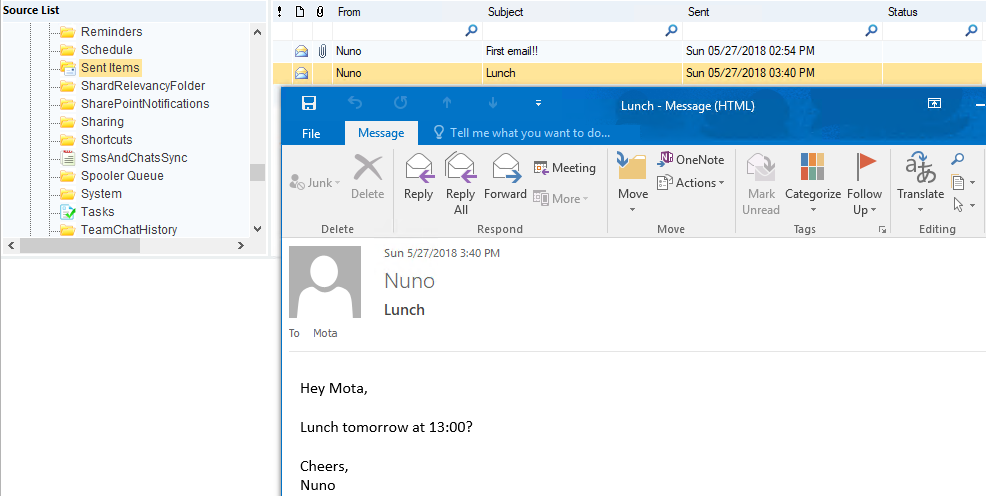

From here, we can explore the mailboxes in the EDB
file and, if Outlook is installed, preview their content, such as calendar
entries, contacts, emails, and so on:
Extracting one or more items is straightforward. We
simply select the one(s) we want to extract, right-click on them and select one
of the desired options:
If we are exporting emails, we can select the
location where to export them to, in which format we want those emails saved as,
and if we want to keep their folder hierarchy:
Once the process is complete, we are notified:
Exporting to PST
Now that we have access to the data inside the EDB
file, we can extract to PST file(s) using two different methods. One way is to click
on PST File in order to create a
blank PST file as a destination, which we can use to drag-and-drop items into.
We select Create New PST File:
Chose a location and a name for it:
And click Next
to create it and add it as a Destination:
We now have the EDB file as a Source and our newly created PST as a Destination. As the tip in the main screen suggests, we can now
simply drag-and-drop items (be that emails, calendar items, contacts, and so
on) from our EDB to our PST file:
The second method allows us to easily export one or
more mailboxes to PST. To use this method, we right-click on our source and
select Export Mailboxes to PST...:
From here, we can select which mailboxes we want to
export, and all of them will have their own PST file:
We can also manually select which folders we want to
export for each mailbox. A downside is that, by default, it also extracts all
the system folders that are typically hidden from users, and those are generally
not needed... We can use the Custom
Selected option, which allows us to filter out all the system folders we
don’t want to extract and apply that filter to all mailboxes:
Using the Set
Filter option, we can easily decide which item types we want to extract,
and which ones we want to ignore. We can also filter items based on their
creation time. A really good feature indeed.
Once we are happy with our selection(s) and filters,
we click Export and the process
begins:
Once complete, we get a report stating how many items
were exported per folder, if any duplicates were found, and some more details:
Office 365
Office 365 can be used both as a source or as a
target. As a requirement, we need an account with the following rights in
Office 365/Exchange Online:
·
A Global Administrator;
·
Full Access permission over all the Office 365
mailboxes we want to work on.
After establishing the connection, we can use Single Mailbox, Multiple Mailboxes, Public
Folders, and Archive Folders as
sources or targets. We can then export/import data from/to mailboxes in
Exchange Online. For example, we can connect to a mailbox on-premises using the
Live Exchange option (source),
connect to a mailbox in Exchange Online using the Office 365 option, and then migrate the mailbox’s content from
on-premises to the cloud. It is also possible to export Office 365 mailbox items
to EML, DBX, and PST files.
After selecting Office
365 (Exchange Online) option, click Next:
Select an option to specify what you want to connect
to. Either:
1.
Connect Single Mailbox;
2.
Connect Public Folder;
3.
Connect Archive Mailbox;
4.
Connect Multiple Mailboxes.
Enter the user name and password of a user account that
has full rights over the selected mailbox(s) or public folder(s). The strange thing
here, is that we need an Outlook profile (at least when using Outlook 2016) created
with the user that has full access to the mailboxe(s) we want to import data
into. This means the Use existing
outlook profiles option must be selected as Kernel for Exchange Server will
use Outlook and a MAPI connection to import data. Since Outlook is used, why do
we need to specify credentials and a server name? After all, Outlook will take
care of all of that with the profile we must create...
Click OK
after you have created the required profile and entered all the mandatory
details:
If the tenant has multiple mailboxes, then the wizard
shows the list of all mailboxes:
Check the mailbox(s) you want to add as a source or
target, and click Next;
All the selected mailboxes are then added (in this
case to the target/destination pane):
From here, it’s easy to import data into the mailbox
by dragging items from a source like an offline EDB file, a live Exchange
mailbox, or even from another Office 365 mailbox.
Conclusion
Although it’s possible to use Kernel for Exchange
Server to perform mailbox migrations from an on-premises live Exchange
environment to Office 365, for example, it is important to keep in mind that
this tool has been primarily designed as an Exchange mailbox database recovery
tool. With that in mind, it performs great in that field. It can easily recover
data from inaccessible EDB files, and export that data to PSTs or to a myriad
of other formats or targets. As a bonus, it is also capable of performing basic
migrations, which can come in handy in some situations.
